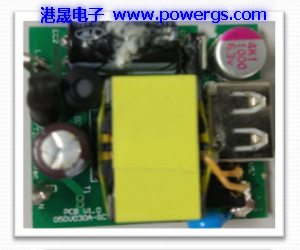

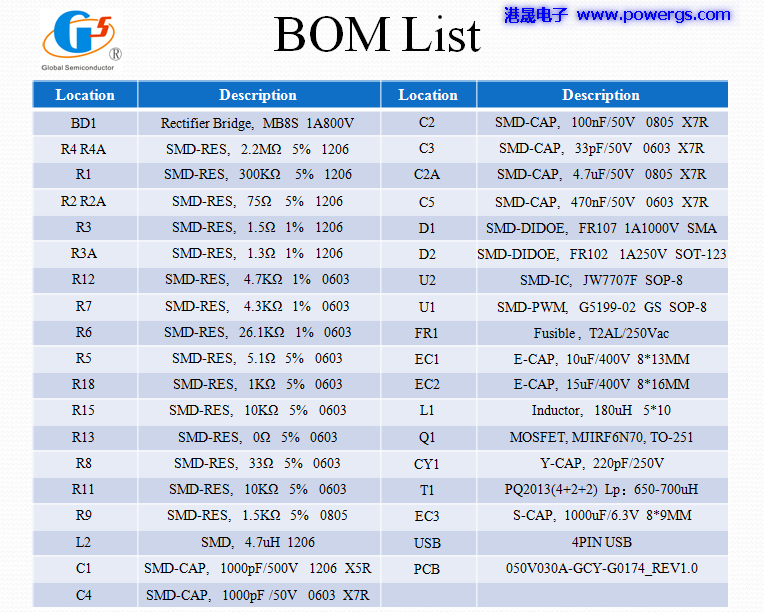

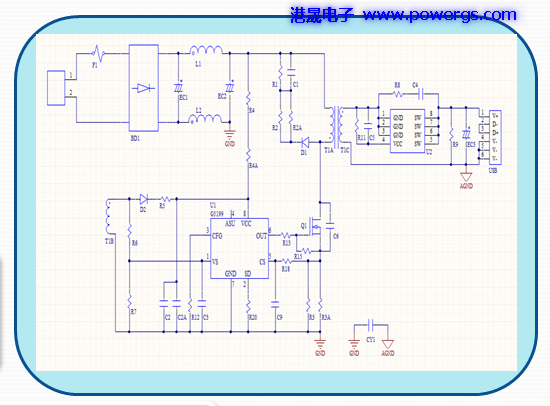

| 5V 3A USB solution circuit diagram BOM list, Global Semi. G5199B-02 |
|
| Source: Date：2018-11-25 Views：3041 |
|
Input: 90V-264V;
Output: 5V3A;

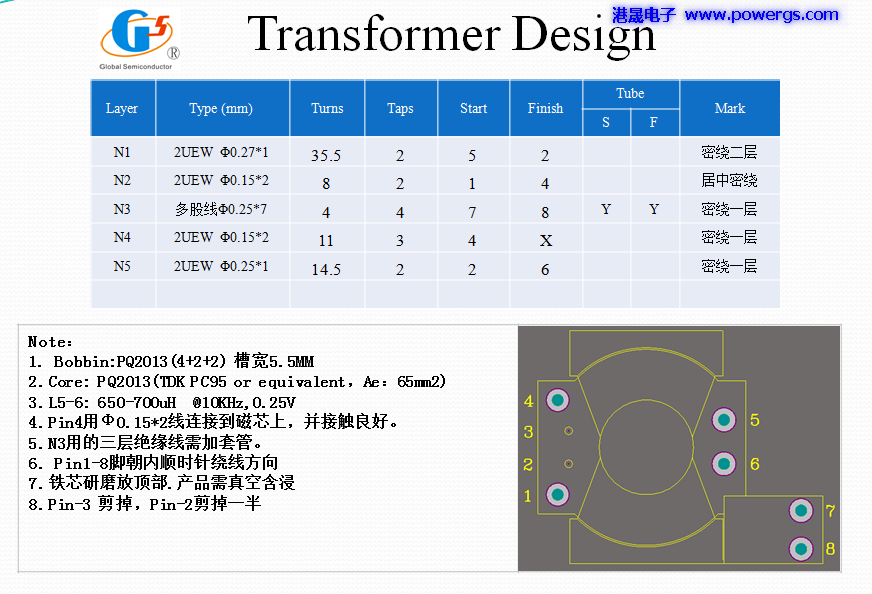

Main components: Transformer: PQ2013 (4+2+2); Synchronous rectification: JW7707F; IC: G5199B-02< BR>Wire: PCB end.
|
|
|
