5V1A power solution, MIX-DESIGN MD1701H-5V1A-EE13 non-safety model
Source: CONQUER ELECTRONICS Date：2019-12-21 Views：3769

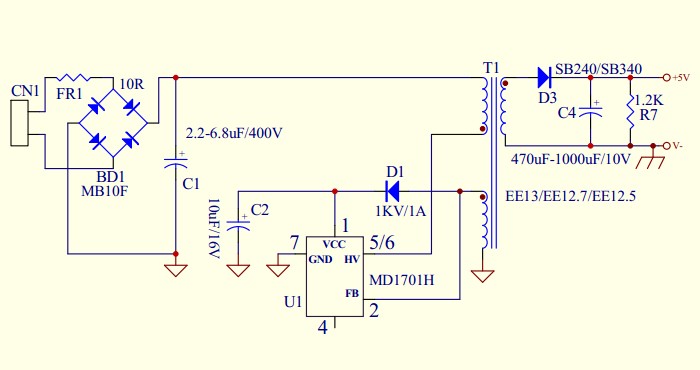

MIX-DESIGN MD1701H-5V1A-EE13 non-safety model circuit diagram

5V1A power solution, MIX-DESIGN MD1701H-5V1A-EE13 non-safety model

MD1701H-5V/1A BOM List
Product specifications: EE13-5V / 1A Input: 100 ~ 264Vac; Output: 5V1A (non-safety products)
primary
No. Q’ty Location Discription Pacakge Remark
1 1 C1 4.7uF, 400V, Electrolytic 105 ℃ Φ8*12
2 1 C2 10uF, 25V, Electrolytic ,Low ESR 105℃ Φ5*11
3 1 FR1 10R 1W fuse Axial
4 1 T1 Transformer, EE13 5 + 5 pins, Ae: 17mm2 EE13
5 1 CY1 102 1KV ceramic or Y capacitor DIP
6 1 U1 MD1701H SOIC-7
7 1 BD1 MB10F 1000V/1A Bridge SO-4
8 1 D1 F7 1KV/1A, SOD-123 SOD-123
Secondary
No. Q’ty Location Discription Pacakge Remark
9 1 C4 470 uF, 10 V, Electrolytic,Low ESR, 105℃ Φ6*8
10 1 USB USB DIP
11 1 D3 SS34 3A/40V SMA SMA
12 1 R7 Resistor SMD 1.2K 0805 5% 0805

MD1701H-5V / 1A transformer parameter data

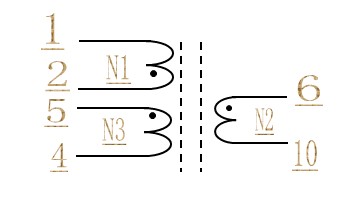

1. the circuit schematic diagram: Numbering EE13-5V/1A
5V1A 電源方案，MIX-DESIGN 美思迪賽 MD1701H-5V1A-EE13非安規機種 version A
Magnetic core PC40/PC30
Core Ae value 17mm2
skeleton EE13(5+5)vertical
Fiction
Review
date 2018.08.14
EE13 vertical skeleton: foot pitch 2.54mm,
row pitch 8.5mm, slot width 7.5mm
　
2. Coil parameters
Coil Number of turns Wire diameter
(mm)		 Number of
shares		 Number of
tape layers		 Current Max (mA) Remark
N1 2--1 136 0.13 2UEW 1 2
N2 6--10 9 0.40 2UEW 1 2 1000 Centered
N3 5--4 11 0.13 2UEW 1 2 Centered Centered
Note: 3/7/8/9 feet removed
　
3. electrical performance
Test items Test side skills requirement Test Conditions Remark
Primary
inductance		 N1 1.80mH F=10KHz, U=0.3V Pin 1, 2 test
Primary leakage
inductance		 N1 63UH F=10KHz, U=0.3V N2 N3 short-circuit test
　
4. Product safety
Test items Test side skills requirement Test Conditions Remark
Primary pressure
Primary pair core
　
5. Inspection method
According to the general inspection level II in GB2828-87 "Sampling Procedures and Sampling
Tables for Batch Inspection and Counting" and a sampling plan for normal inspection
